– Builder Hoist, Tower Hoist
Multi-Functional Material Hoist
Multi-Functional Material Hoist (Wire Rope)
| MODEL | ATH100 | ATH150 |
|---|---|---|
| Gross Load | 1000 kg | 1200 kg |
| Net Load | 750 kg | 1000 kg |
| Wire Rope | 12 mm (6 × 36) | 12 mm (6 × 36) |
| Speed | 30 Mtr./Min. | 30 Mtr./Min. |
| Height | 120 Mtr. | 120 Mtr. |
| Motor Capacity | 10 HP (7.5 KW) Brake Motor | 12.5 HP (9.3 KW) Brake Motor |
| Mast Section | Square 500 mm × 400 mm × 1.5 Mtr.L 50 × 50 × 6 mm Angle | Square 500 mm × 400 mm × 1.5 Mtr.L 50 × 50 × 6 mm Angle |
| Wall Tie Interval | 6 Mtr. | 6 Mtr. |
| Rectangle Cage (Inside) | 1.25 (L) × 0.71 (W) × 0.6 (H) mtr. | 1.25 (L) × 0.71 (W) × 0.6 (H) mtr. |
| Feature | Details |
|---|---|

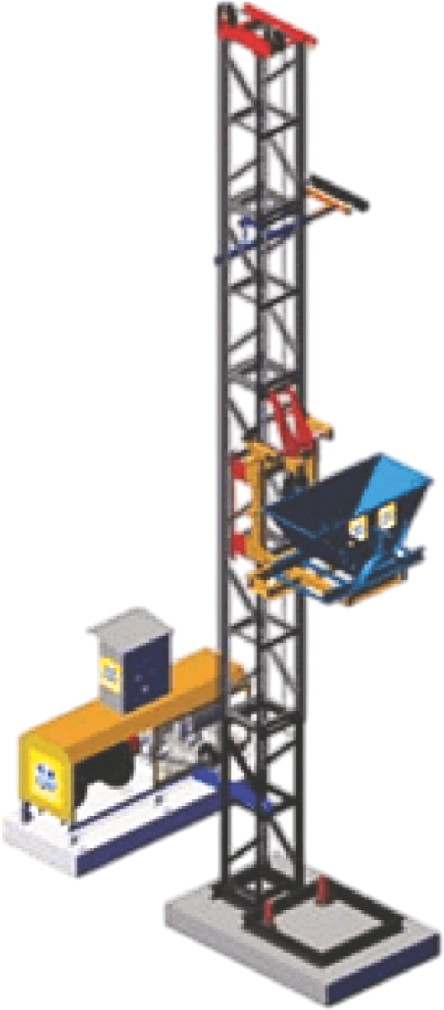

| Concrete Bucket (Tilting Type) | 300 Litres / 0.3 Cubic Meter |

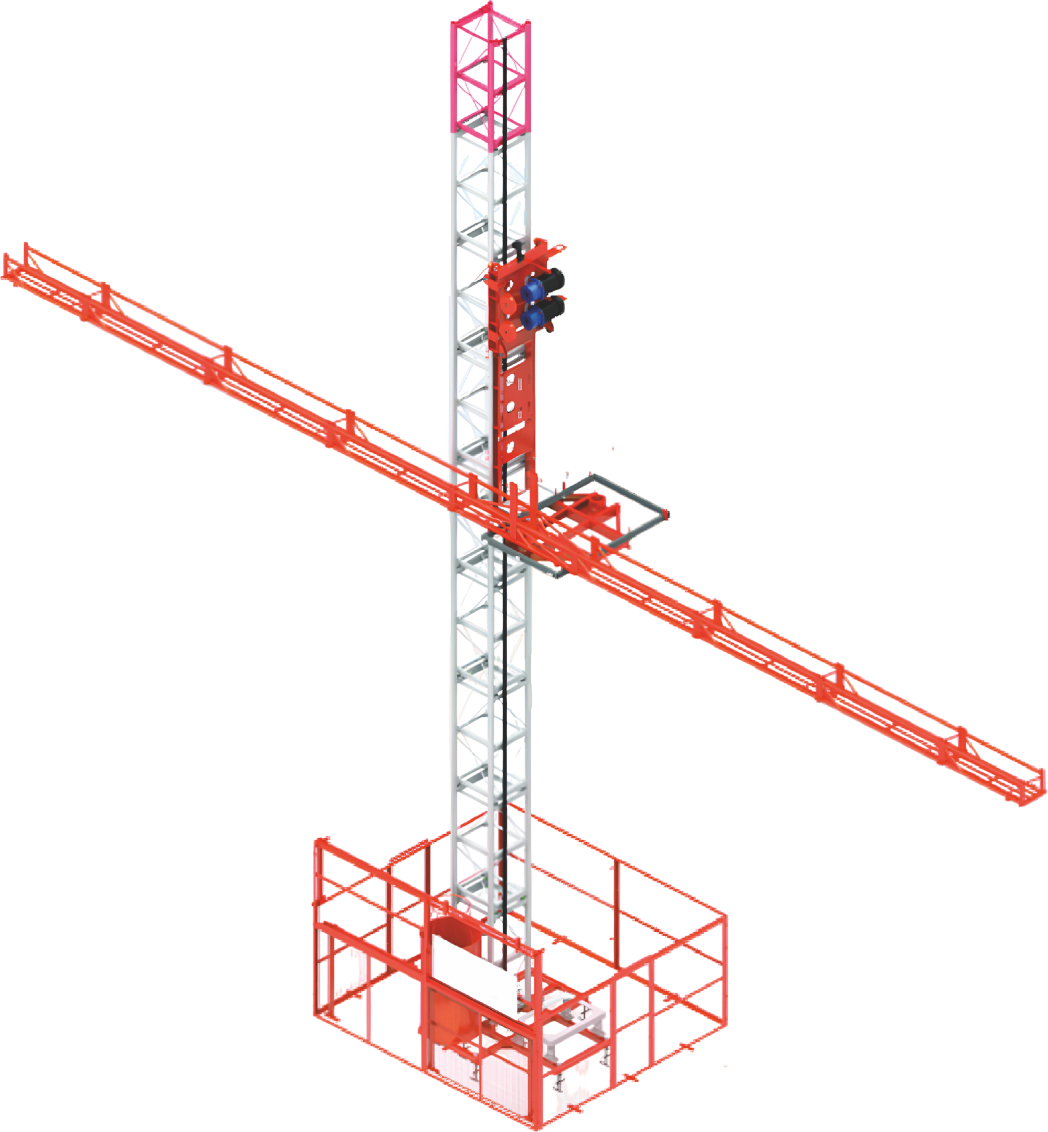

| Rebar Carrier | 7 Mtr Lg. (Horizontal) |
| Floor Selection | Yes (Optional) |
| Erection Crane | Manual Type |
| Safety Features |
|---|
| Power fail safe brake motor |
| Top limit |
| Bottom limit |
| Safety Brake |
| Full Covered Wire Rope Drum |
| Full Covered Electrical motor and Gear box |

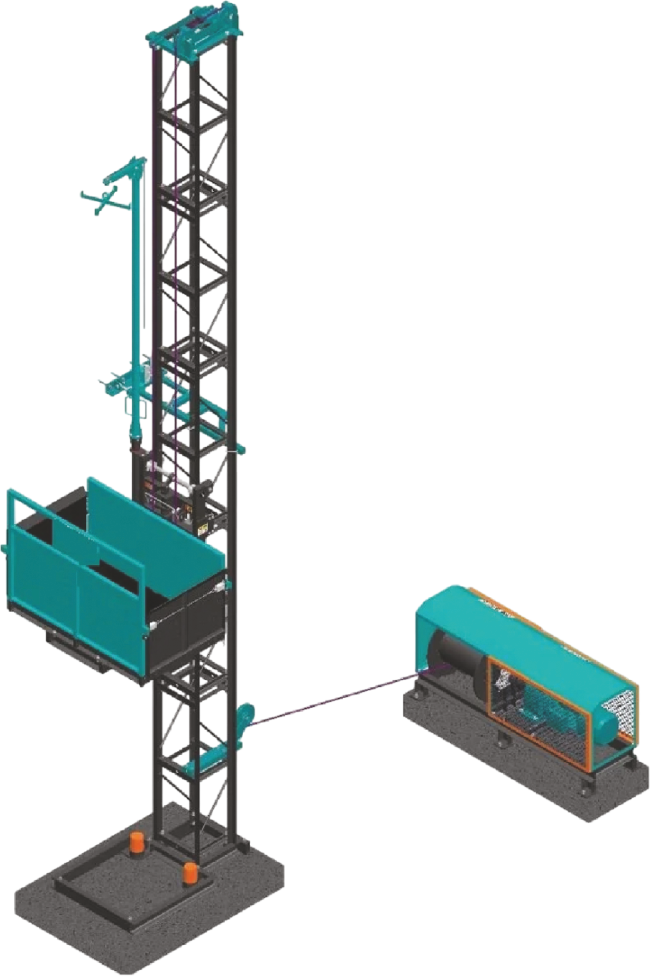

Standard Material Cage (Rectangle)
- B.tech Machinewala Tower Hoist is designed to offer the most cost-efficient vertical transport solution on site and is delivered in 1000 KG & 1200 KG gross capacity with a three-phase brake motor.

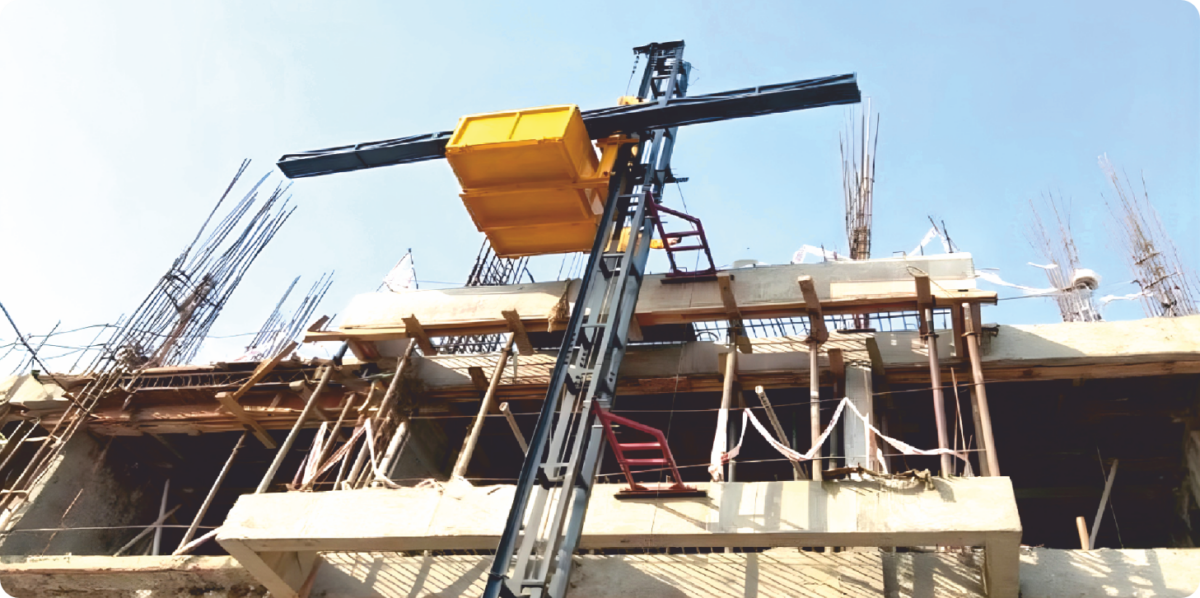

- B.tech Machinewala Tower Hoist unit has multi-functionality and can be used either to transport construction material or TMT bars.
- Its robust and simple design makes it suitable for all vertical access applications, including direct access to buildings for new construction or refurbishment work.
- Safety is paramount in all B.tech Machinewala Machines. The Tower Hoist conforms to the latest safety standards IS 12466:2012, which not only ensure operational safety but also lay down requirements for capacity, construction, performance, and testing of the hoist.
- Safety braking of carriage shall be provided to cater for wire rope failure.
